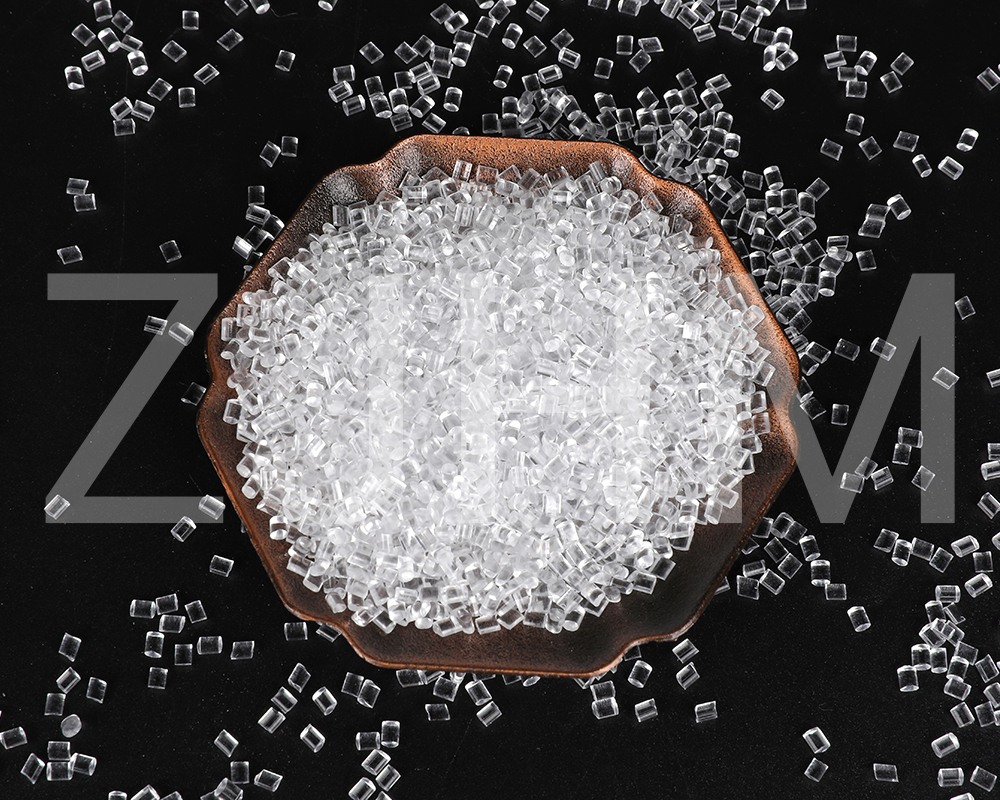

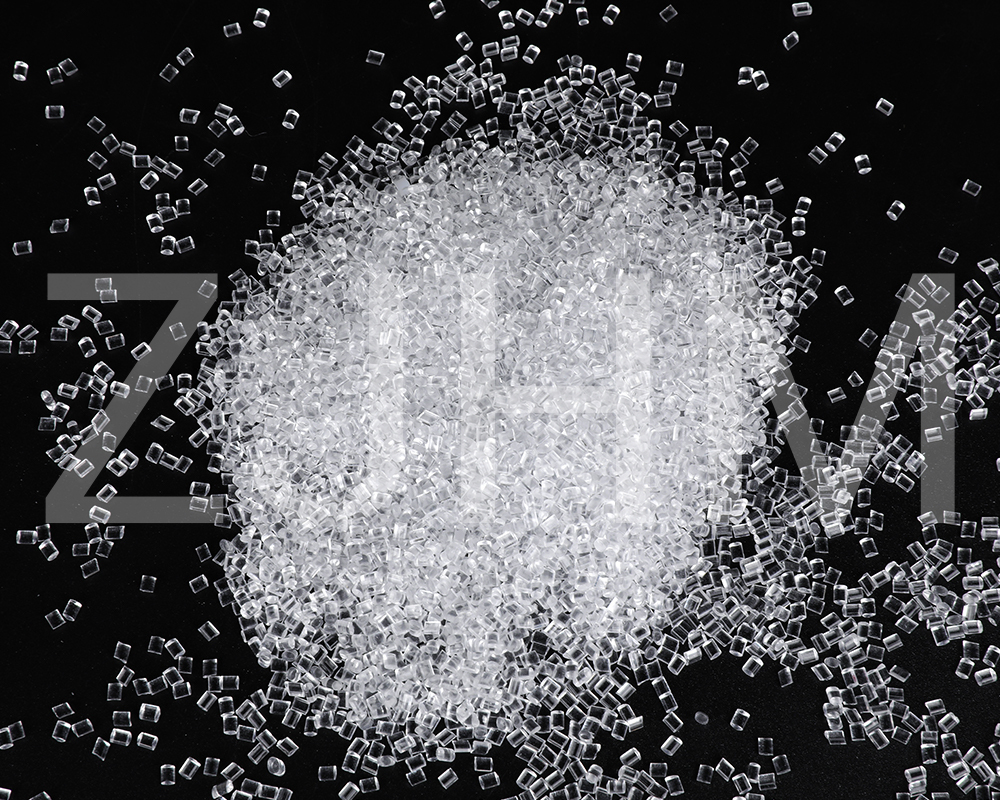

PC-6700 charger housing polycarbonate (PC) granules

PREV: PC-175 injection molding applications polycarbonate (PC) granules NEXT:No next article

Product information	Material shape	graininess
	Processing mode	Data sheet
	flame retardant rating	V-2 V-0
	Material property	Non chloro non bromine flame retardant
	conforms	· EC 1907/2006(REACH)·RoHS·UL
	Material usage	·Office Equipment Applications · Charger Housing · Electronic Appliance Applications
		·Electronic and electrical enclosures, power sockets, and home appliance applications
		·Hair dryer accessories · computer plug
	additive	Flame retardant lubricant release agent
	UL file number	E56070

Physical property		Testing standards	data	unit
	Specific gravity 23 ℃	ISO 1183	1.2	g/cm3
	Shrinkage rate	ISO 294	0.4~0.6	%
	Melt index 300 °C 1.2kg	ISO 1133	10	cm3/10min
Mechanical property		Testing standards	data	unit
	Tensile strength yield 50mm/min	ISO 527	60	MPa
	Tensile strength yield 50mm/min	ISO 527	65	MPa
	Elongation rate 50mm/min	ISO 527	120	%
	Bending strength 2.0mm/min	ISO 178	90	MPa
	Bending modulus 2.0mm/min	ISO 178	2.3	GPa
	Cantilever beam notch impact 23 ℃	ISO 180	60	kJ/㎡
	Cantilever beam notch impact -30 ℃	ISO 180	15	kJ/㎡
	Simply supported beam notch impact 23 ℃	ISO 179	60	kJ/㎡
	Simply supported beam notch impact -30 ℃	ISO 179	15	kJ/㎡
Thermal performance		Testing standards	data	unit
	Hot deformation not annealed 1.8MPa	ISO 75	125	℃
	Hot deformation annealing 1.8MPa	ISO 75	140	℃
	Vicat softening 50 °C/hr 10N	ISO 306	150	℃
	Vicat softening 50 °C/hr 50N	ISO 306	145	℃
	Data sheet	ISO 11359	6.8E-5	cm/cm/℃
Electrical performance		Testing standards	data	unit
	Volume resistivity	IEC 60093	1E+16	Ω.m
	Surface Resistivity	IEC 60093	1E+16	Ω
	1MHz Dielectric constant	IEC 60250	3
Flame retardant performance		Testing standards	data	unit
	Fire rating full color 1.5mm	UL94	V-2
	Fire rating full color 2.5mm	UL94	V-0
	Fire rating full color 3.0mm	UL94	V-0
UL		Testing standards	data	unit
	Fire rating full color 1.5mm	UL94	V-2
	Fire rating full color 2.5mm	UL94	V-0
	Fire rating full color 3.0mm	UL94	V-0
	RTI Elec 1.5mm	UL 746B	80	℃
	RTI Elec 2.5mm	UL 746B	80	℃
	RTI Elec 3.0mm	UL 746B	80	℃
	RTI Imp 1.5mm	UL 746B	80	℃
	RTI Imp 2.5mm	UL 746B	80	℃
	RTI Imp 3.0mm	UL 746B	80	℃
	RTI Str 1.5mm	UL 746B	80	℃
	RTI Str 2.5mm	UL 746B	80	℃
	RTI Str 3.0mm	UL 746B	80	°℃
	Dielectric Strength	ASTM D149	30	KV/m
	dimensional stability	UL746	0.0	%
	Volume resistivity	ASTM D257	1E+1	Ω.cm
	GWFI 1.5mm	IEC 60695-2-12	960	℃
	GWFI 3.0mm	IEC 60695-2-12	960	℃
	GWIT 1.5mm	IEC 60695-2-13	825	℃
	GWIT 3.0mm	IEC 60695-2-13	825	℃
	ball pressure	IEC 60695-10-2	135	℃
